203H 90W Lead-Free Electronic Soldering Station
Quantity: In Stock
CSD-203H Lead-Free High Frequency Soldering Station
The CSD-203H Soldering Station is a high-frequency, lead-free solution designed for precision soldering in electronics and industrial applications. It features advanced temperature control technology, ensuring fast heat-up, stable performance, and reliable soldering quality.
Key Features
✔ High-Frequency Heating System
Delivers rapid heat-up and quick temperature recovery for efficient operation.
✔ Pre-Sensor Technology
Provides accurate temperature control, ensuring consistent soldering results.
✔ Energy-Saving Sleep Mode
Automatically enters sleep mode when idle to reduce power consumption.
✔ Temperature Lock Function
Maintains a stable temperature setting to ensure consistent welding performance.
✔ Digital Calibration
Allows easy and precise temperature adjustment for improved accuracy.
✔ User-Friendly Operation
Simple controls make it suitable for both professionals and beginners.

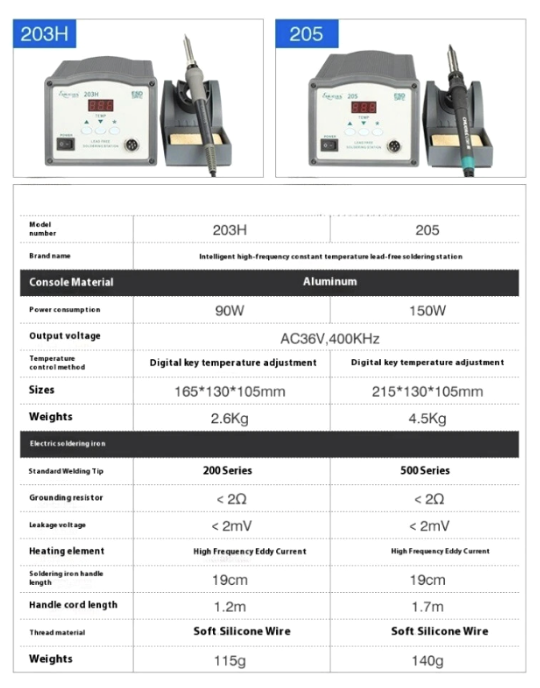

Technical Specifications
| Specification | Details |
|---|---|
| Working Voltage | AC 220V / 50Hz or AC 110V / 60Hz |
| Temperature Range | 50°C – 600°C |
| Maximum Power | 90W |
| Temperature Stability (No Load) | ±2°C |
| Tip-to-Ground Resistance | < 2Ω |
| Tip-to-Ground Potential | < 2mV |
| Temperature Calibration | Digital |
| Weight | Approx. 3.23 kg |
| Package Size | 240 × 230 × 130 mm |
| Carton Size | 505 × 490 × 280 mm |
| Packing | 8 units per carton |

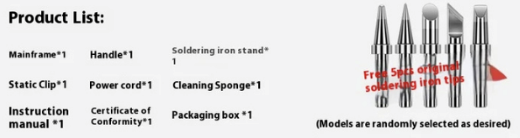

Compatible Accessories
- Handle Model: LT-202 Soldering Pen
- Heating Core: VH90 Heating Core
- Soldering Tips: 200 Series Tips
Summary
The CSD-203H combines precision, efficiency, and energy-saving features in a compact design. With its fast heating, stable temperature control, and easy operation, it is an ideal choice for high-quality soldering tasks in electronics and industrial environments.
